SN74LVC32ADR Integrated Circuit Chip With OR Gate IC 4 Channel 14-SOIC
IC GATE OR 4CH 2-INP 14SOIC
Specifications of SN74LVC32ADR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Gates and Inverters |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.6ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74LVC32 |

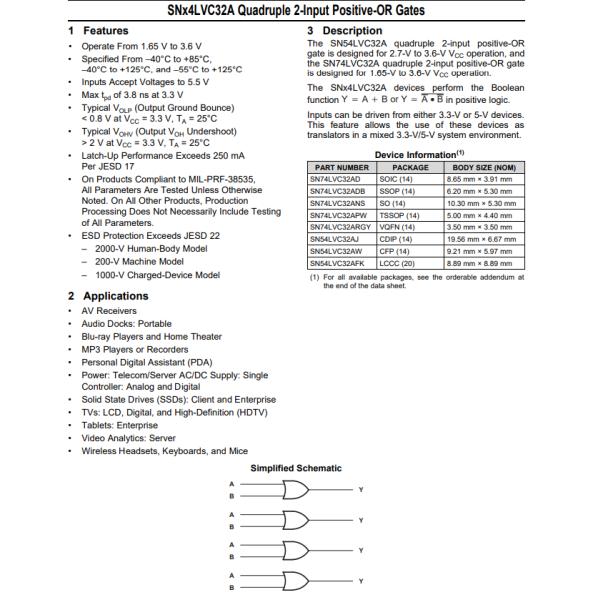

Features of SN74LVC32ADR
• Operate From 1.65 V to 3.6 V
• Specified From –40°C to +85°C,
–40°C to +125°C, and –55°C to +125°C
• Inputs Accept Voltages to 5.5 V
• Max tpd of 3.8 ns at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• On Products Compliant to MIL-PRF-38535,All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model
– 200-V Machine Model
– 1000-V Charged-Device Model
Applications of SN74LVC32ADR
• AV Receivers
• Audio Docks: Portable
• Blu-ray Players and Home Theater
• MP3 Players or Recorders
• Personal Digital Assistant (PDA)
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid State Drives (SSDs): Client and Enterprise
• TVs: LCD, Digital, and High-Definition (HDTV)
• Tablets: Enterprise
• Video Analytics: Server
• Wireless Headsets, Keyboards, and Mice
Environmental & Export Classifications of SN74LVC32ADR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
