SN74AVC2T45DCUR Integrated Circuit Chip IC TRANSLTR BIDIRECTIONAL 8VSSOP

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

SN74AVC2T45DCUR Integrated Circuit Chip IC TRANSLTR BIDIRECTIONAL 8VSSOP

Brand Name : original

Model Number : SN74AVC2T45DCUR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Circuits : 1

Channels per Circuit : 2

Voltage - VCCA : 1.2 V ~ 3.6 V

Voltage - VCCB : 1.2 V ~ 3.6 V

Data Rate : 500Mbps

Operating Temperature : -40°C ~ 85°C (TA)

Supplier Device Package : 8-VSSOP

Channel Type : Bidirectional

Contact Now

SN74AVC2T45DCUR Integrated Circuit Chip IC TRANSLTR BIDIRECTIONAL 8VSSOP

Voltage Level Translator Bidirectional 1 Circuit 2 Channel 500Mbps 8-VSSOP

Specifications of SN74AVC2T45DCUR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Logic
Translators, Level Shifters
Mfr Texas Instruments
Series 74AVC
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 2
Voltage - VCCA 1.2 V ~ 3.6 V
Voltage - VCCB 1.2 V ~ 3.6 V
Input Signal -
Output Signal -
Output Type Tri-State, Non-Inverted
Data Rate 500Mbps
Operating Temperature -40°C ~ 85°C (TA)
Features -
Mounting Type Surface Mount
Package / Case 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package 8-VSSOP
Base Product Number 74AVC2T45

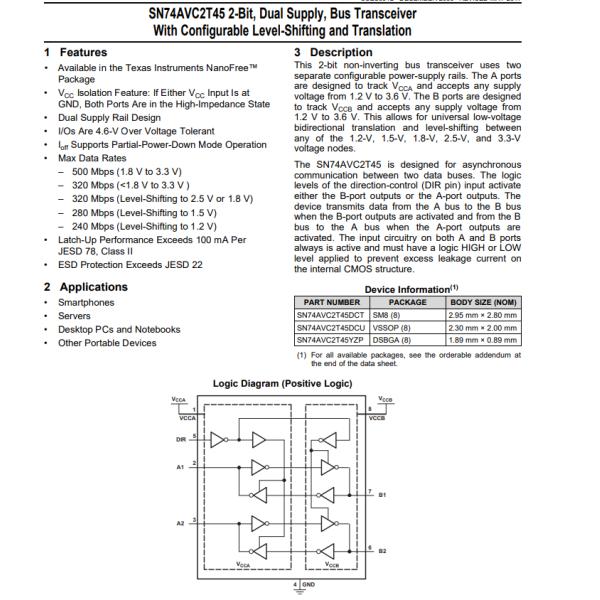

Features of SN74AVC2T45DCUR

• Available in the Texas Instruments NanoFree™ Package
• VCC Isolation Feature: If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State
• Dual Supply Rail Design
• I/Os Are 4.6-V Over Voltage Tolerant
• Ioff Supports Partial-Power-Down Mode Operation
• Max Data Rates
– 500 Mbps (1.8 V to 3.3 V)
– 320 Mbps (<1.8 V to 3.3 V )
– 320 Mbps (Level-Shifting to 2.5 V or 1.8 V)
– 280 Mbps (Level-Shifting to 1.5 V)
– 240 Mbps (Level-Shifting to 1.2 V)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22

Applications of SN74AVC2T45DCUR

• Smartphones

• Servers

• Desktop PCs and Notebooks

• Other Portable Devices

Environmental & Export Classifications of SN74AVC2T45DCUR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
