TPS61071DDCR Integrated Circuit IC Chip REG BOOST ADJ 500MA TSOT23-6

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

TPS61071DDCR Integrated Circuit IC Chip REG BOOST ADJ 500MA TSOT23-6

Brand Name : original

Model Number : TPS61071DDCR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Outputs : 1

Voltage - Input (Min) : 0.9V

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 1.8V

Voltage - Output (Max) : 5.5V

Current - Output : 500mA (Switch)

Frequency - Switching : 1.2MHz

Operating Temperature : -40°C ~ 85°C (TA)

Contact Now

TPS61071DDCR Integrated Circuit IC Chip REG BOOST ADJ 500MA TSOT23-6

Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 500mA (Switch) SOT-23-6 Thin, TSOT-23-6

Specifications of TPS61071DDCR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Function Step-Up
Output Configuration Positive
Topology Boost
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 0.9V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1.8V
Voltage - Output (Max) 5.5V
Current - Output 500mA (Switch)
Frequency - Switching 1.2MHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case SOT-23-6 Thin, TSOT-23-6
Supplier Device Package SOT-23-THIN
Base Product Number TPS61071


Features of TPS61071DDCR

• 90% Efficient Synchronous Boost Converter
- 75mA Output Current at 3.3V From 0.9-V Input
- 150mA output current, 3.3V, 1.8V input
• Device Quiescent Current: 19 µA (Typ)
• Input Voltage Range: 0.9V to 5.5V
• Adjustable Output Voltage Up to 5.5V
• Power saving mode version available for improved Efficiency at low output power
• Load disconnection during shutdown
• Overheating protection
• Small 6-Pin Thin SOT23 Package


Applications of TPS61071DDCR

• All One-Cell, Two-Cell, and Three-Cell Alkaline NiCd or NiMH or Single-Cell Li Battery-Powered Products
• Portable Audio Players
• Cellular Phones
• PDAs
• Personal Medical Products
• White LED Lighting

Environmental & Export Classifications of TPS61071DDCR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

TPS61071DDCR Integrated Circuit IC Chip REG BOOST ADJ 500MA TSOT23-6


Wholesale TPS61071DDCR Integrated Circuit IC Chip REG BOOST ADJ 500MA TSOT23-6 from china suppliers

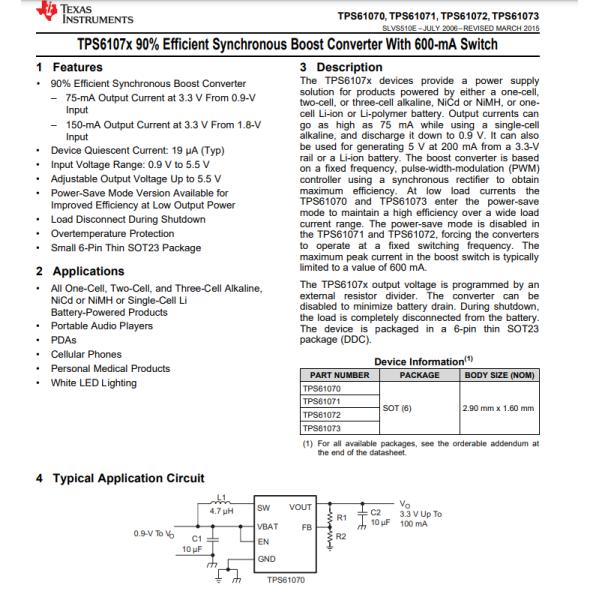

TPS61071DDCR Integrated Circuit IC Chip REG BOOST ADJ 500MA TSOT23-6 Images
