THVD1512DGSR Transistor IC Chip Full RS485 10-VSSOP 500mA 500kbps

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

THVD1512DGSR Transistor IC Chip Full RS485 10-VSSOP 500mA 500kbps

Brand Name : Original

Model Number : THVD1512DGSR

Certification : Original

Place of Origin : Original

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Receiver Hysteresis : 50 mV

Data Rate : 500 mA

Voltage - Supply : 4.5V ~ 5.5V

Operating Temperature : -40°C ~ 125°C

Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Supplier Device Package : 10-VSSOP

Contact Now

THVD1512DGSR Transistor IC Chip Full RS485 10-VSSOP 500mA 500kbps

THVD1512DGSR 1 / 1 IC TRANSCEIVER Full RS485 10-VSSOP 500kbps

Features of THVD1512DGSR

Meets or Exceeds the Requirements of the TIA/EIA-485A Standard
• 4.5 V to 5.5 V Supply Voltage
• Integrated Bus I/O Protection
– ± 30 kV HBM ESD
– ± 18 kV IEC 61000-4-2 ESD Contact Discharge
– ± 25 kV IEC 61000-4-2 ESD Air-Gap Discharge
– ± 4 kV IEC 61000-4-4 Electrical Fast Transient
• Extended Operational Common-mode: ± 15 V
• Low EMI 500 kbps and 50 Mbps Data Rates
• Extended Temperature Range: -40°C to 125°C
• Large Receiver Hysteresis for Noise Rejection
• Low Power Consumption
– Low Standby Supply Current: < 1 µA
– Current During Operation: < 1 mA
• Glitch-Free Power-Up/Down for Hot Plug-in Capability
• Open, Short, and Idle Bus Failsafe
• 1/8 Unit Load Options (Up to 256 Bus Nodes)
• Small-Size VSSOP Packages Save Board Space or SOIC for Drop-in Compatibility

Product Attributes of THVD1512DGSR
Product Status Active
Type Transceiver
Protocol RS485
Number of Drivers/Receivers 1/1
Duplex Full
Receiver Hysteresis 50 mV
Data Rate 500kbps
Voltage - Supply 4.5V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-VSSOP
Base Product Number THVD1512

Environmental & Export Classifications of THVD1512DGSR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Applications of THVD1512DGSR

• Motor Drives

• Factory Automation and Control

• Grid Infrastructure • Building Automation

• HVAC Systems • Video Surveillance

• Process Analytics

• Telecom Infrastructure

THVD1512DGSR Transistor IC Chip Full RS485 10-VSSOP 500mA 500kbps


Product Tags:

THVD1512DGSR Transistor IC Chip



Full RS485 Transistor IC Chip



500kbps THVD1512DGSR


Wholesale THVD1512DGSR Transistor IC Chip Full RS485 10-VSSOP 500mA 500kbps from china suppliers

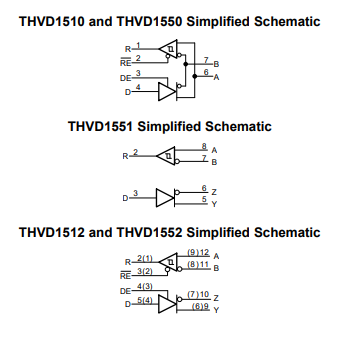

THVD1512DGSR Transistor IC Chip Full RS485 10-VSSOP 500mA 500kbps Images
