LM25017SDE/NOPB Power Management ICs Reg Buck Adj 650ma 8llp

Name: LM25017SDENOPB Power Management ICs Reg Buck Adj 650ma 8llp
Brand: original
Price: 1 USD

Brand Name : original

Model Number : LM25017SDE/NOPB

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Active

Function : Step-Downxer, Translator

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable

Number of Outputs : 1stal

Voltage - Input (Min) : 7.5V

Voltage - Input (Max) : 48V

Contact Now

LM25017SDE/NOPB Power Management ICs Reg Buck Adj 650ma 8llp

Buck Switching Regulator IC Positive Adjustable 1.225V 1 Output 650mA 8-WDFN Exposed Pad

Specifications of LM25017SDE/NOPB

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Power Management (PMIC)
	Voltage Regulators - DC DC Switching Regulators
Mfr	Texas Instruments
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	7.5V
Voltage - Input (Max)	48V
Voltage - Output (Min/Fixed)	1.225V
Voltage - Output (Max)	40V
Current - Output	650mA
Frequency - Switching	Up to 1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-WSON (4x4)
Base Product Number	LM25017

Features of LM25017SDE/NOPB

• Wide 7.5-V to 48-V input range

• Integrated 650-mA high-side and low-side switches

• No schottky diode required

• Constant on-time control

• No loop compensation required

• Ultra-fast transient response

• Nearly constant operating frequency

• Intelligent peak current limit

• Adjustable output voltage from 1.225 V

• Precision 2% feedback reference

• Frequency adjustable to 1 MHz

• Adjustable undervoltage lockout (UVLO)

• Remote shutdown

• Thermal shutdown

• Create a custom design using the LM25017 with the WEBENCH® power designer

Applications of LM25017SDE/NOPB

• Industrial equipment

• Smart power meters

• Telecommunication systems

• Isolated bias supply (Fly-Buck™)

Environmental & Export Classifications of LM25017SDE/NOPB

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

LM25017SDE/NOPB Power Management ICs Reg Buck Adj 650ma 8llp

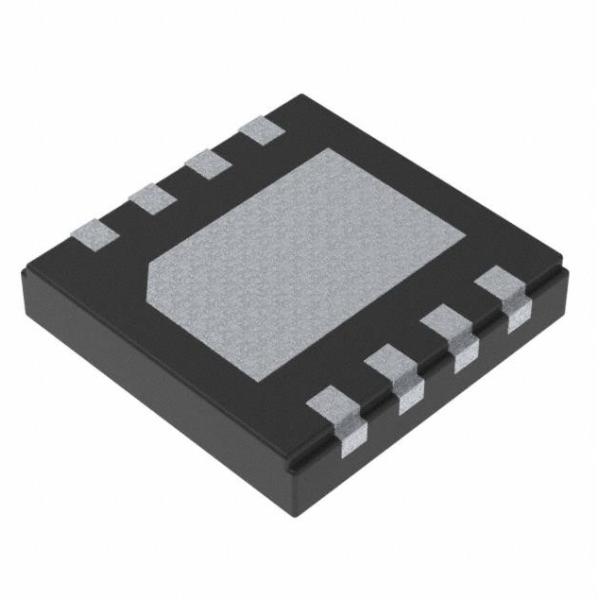

LM25017SDE/NOPB Power Management ICs Reg Buck Adj 650ma 8llp Images
