Number of Circuits : 1
Channels per Circuit : 4
Voltage - VCCA : 1.2 V ~ 3.6 V
Voltage - VCCB : 1.65 V ~ 5.5 V
Output Type : Tri-State, Non-Inverted
Data Rate : 100Mbps
Operating Temperature : -40°C ~ 125°C (TA)
Channel Type : Bidirectional
TXB0104QPWRQ1 Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps
Specifications of TXB0104QPWRQ1
TYPE | DESCRIPTION |
Category | Integrated Circuits (ICs) |
Logic | |
Translators, Level Shifters | |
Mfr | Texas Instruments |
Series | Automotive, AEC-Q100 |
Package | Tape & Reel (TR) |
Product Status | Active |
Translator Type | Voltage Level |
Channel Type | Bidirectional |
Number of Circuits | 1 |
Channels per Circuit | 4 |
Voltage - VCCA | 1.2 V ~ 3.6 V |
Voltage - VCCB | 1.65 V ~ 5.5 V |
Input Signal | - |
Output Signal | - |
Output Type | Tri-State, Non-Inverted |
Data Rate | 100Mbps |
Operating Temperature | -40°C ~ 125°C (TA) |
Features | Auto-Direction Sensing |
Mounting Type | Surface Mount |
Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package | 14-TSSOP |
Base Product Number | TXB0104 |
Features of TXB0104QPWRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results
– Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
• 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)
• VCC Isolation Feature – If Either VCC Input is at GND, All Outputs are in the High-Impedance State
• OE Input Circuit Referenced to VCCA
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– A port
• ±2500-V Human-Body Model (A114-B)
• ±1000-V Charged-Device Model (C101)
– B port
• ±15000-V Human-Body Model (A114-B)
• ±1000-V Charged-Device Model (C101)
Decriptions of TXB0104QPWRQ1
• Automotive infotainment
• Advanced Driver Assistance System (ADAS)
• Telematics
Environmental & Export Classifications of TXB0104QPWRQ1
ATTRIBUTE | DESCRIPTION |
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
![]() |

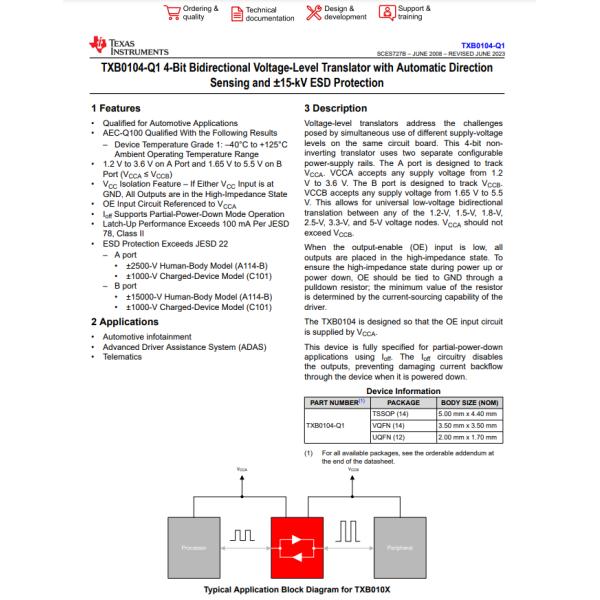

TXB0104QPWRQ1 Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps Images |
