LTC6900CS5#TRMPBF Oscillator, Silicon IC 1kHz ~ 20MHz TSOT-23-5

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

LTC6900CS5#TRMPBF Oscillator, Silicon IC 1kHz ~ 20MHz TSOT-23-5

Brand Name : original

Model Number : LTC6900CS5#TRMPBF

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Frequency : 1kHz ~ 20MHz

Voltage - Supply : 2.7V ~ 5.5V

Current - Supply : 920 µA

Operating Temperature : -40°C ~ 85°C

Package / Case : SOT-23-5 Thin, TSOT-23-5

Supplier Device Package : TSOT-23-5

Mounting Type : Surface Mount

Base Product Number : LTC6900

Contact Now

LTC6900CS5#TRMPBF Oscillator, Silicon IC 1kHz ~ 20MHz TSOT-23-5

Specifications of LTC6900CS5#TRMPBF

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Clock/Timing
Programmable Timers and Oscillators
Mfr Analog Devices Inc.
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Type Oscillator, Silicon
Count -
Frequency 1kHz ~ 20MHz
Voltage - Supply 2.7V ~ 5.5V
Current - Supply 920 µA
Operating Temperature -40°C ~ 85°C
Package / Case SOT-23-5 Thin, TSOT-23-5
Supplier Device Package TSOT-23-5
Mounting Type Surface Mount
Base Product Number LTC6900


Features of LTC6900CS5#TRMPBF


* One External Resistor Sets the Frequency
* 1kHz to 20MHz Frequency Range
* 500μA Typical Supply Current, VS = 3V, 3MHz
* Frequency Error ≤1.5% Max, 5kHz to 10MHz (TA = 25°C)
* Frequency Error ≤2% Max, 5kHz to 10MHz (TA = 0°C to 70°C)
* ±40ppm/°C Temperature Stability
* 0.04%/V Supply Stability
* 50% ±1% Duty Cycle 1kHz to 2MHz
* 50% ±5% Duty Cycle 2MHz to 10MHz
* Fast Start-Up Time: 50μs to 1.5ms
* 100Ω CMOS Output Driver
* Operates from a Single 2.7V to 5.5V Supply
* Low Profi le (1mm) ThinSOT™ Package

Applications of LTC6900CS5#TRMPBF


* Portable and Battery-Powered Equipment
* PDAs
* Cell Phones
* Low Cost Precision Oscillator
* Charge Pump Driver
* Switching Power Supply Clock Reference
* Clocking Switched Capacitor Filters
* Fixed Crystal Oscillator Replacement
* Ceramic Oscillator Replacement

Environmental & Export Classifications of LTC6900CS5#TRMPBF

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

LTC6900CS5#TRMPBF Oscillator, Silicon IC 1kHz ~ 20MHz TSOT-23-5


Wholesale LTC6900CS5#TRMPBF Oscillator, Silicon IC 1kHz ~ 20MHz TSOT-23-5 from china suppliers

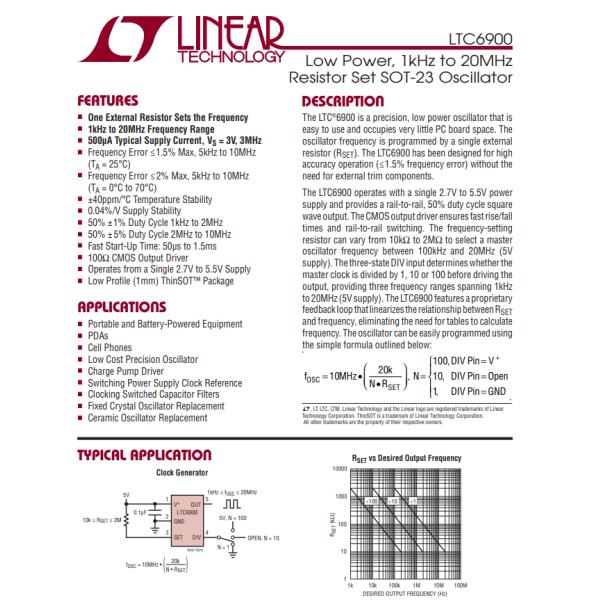

LTC6900CS5#TRMPBF Oscillator, Silicon IC 1kHz ~ 20MHz TSOT-23-5 Images
