SN74LS126ANSR Buffer Non-Inverting 4 Element 1 Bit per Element 3-State Output

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

SN74LS126ANSR Buffer Non-Inverting 4 Element 1 Bit per Element 3-State Output

Brand Name : original

Model Number : SN74LS126ANSR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Logic Type : Buffer, Non-Inverting

Number of Elements : 4

Number of Bits per Element : 1

Output Type : 3-State

Current - Output High, Low : 2.6mA, 24mA

Voltage - Supply : 4.75V ~ 5.25V

Operating Temperature : 0°C ~ 70°C (TA)

Supplier Device Package : 14-SO

Contact Now

SN74LS126ANSR Buffer Non-Inverting 4 Element 1 Bit per Element 3-State Output

Specifications of SN74LS126ANSR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Logic
Buffers, Drivers, Receivers, Transceivers
Mfr Texas Instruments
Series 74LS
Package Tape & Reel (TR)
Cut Tape (CT)
Logic Type Buffer, Non-Inverting
Number of Elements 4
Number of Bits per Element 1
Input Type -
Output Type 3-State
Current - Output High, Low 2.6mA, 24mA
Voltage - Supply 4.75V ~ 5.25V
Operating Temperature 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 14-SOIC (0.209", 5.30mm Width)
Supplier Device Package 14-SO
Base Product Number 74LS126

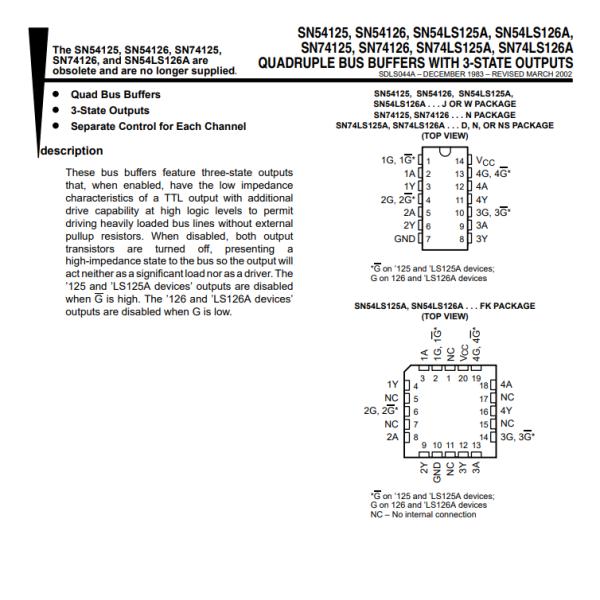

Features of SN74LS126ANSR


* Quad Bus Buffers
* 3-State Outputs
* Separate Control for Each Chann

Applications of SN74LS126ANSR


These bus buffers feature three-state outputs that, when enabled, have the low impedance characteristics of a TTL output with additional drive capability at high logic levels to permit driving heavily loaded bus lines without external pullup resistors.


Environmental & Export Classifications of SN74LS126ANSR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
