MC08XS6421BEKR2 Power Switch/Driver 1:1 N-Channel 5.5A, 11A 32-HSOP

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

MC08XS6421BEKR2 Power Switch/Driver 1:1 N-Channel 5.5A, 11A 32-HSOP

Brand Name : original

Model Number : MC08XS6421BEKR2

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Switch Type : General Purpose

Number of Outputs : 4

Ratio - Input:Output : 0.042361111

Output Configuration : High Side

Output Type : N-Channel

Interface : SPI

Voltage - Load : 7V ~ 18V

Voltage - Supply (Vcc/Vdd) : 4.5V ~ 5.5V

Contact Now

MC08XS6421BEKR2 Power Switch/Driver 1:1 N-Channel 5.5A, 11A 32-HSOP

Specifications of MC08XS6421BEKR2

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Power Distribution Switches, Load Drivers
Series -
Package Tape & Reel (TR)
Product Status Obsolete
Switch Type General Purpose
Number of Outputs 4
Ratio - Input:Output 0.042361111
Output Configuration High Side
Output Type N-Channel
Interface SPI
Voltage - Load 7V ~ 18V
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Current - Output (Max) 5.5A, 11A
Rds On (Typ) 8mOhm, 21mOhm
Input Type -
Features -
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package 32-HSOP
Package / Case 32-SSOP (0.295", 7.50mm Width) Exposed Pad
Base Product Number MC08XS6421


Features of MC08XS6421BEKR2


• Dual 8.0 mΩ and dual 21 mΩ high-side switches with high transient current capability
• 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty-cycles, output On and Off openload detections, thermal shut-down and prewarning, and fault reporting
• Output current monitoring with programmable synchronization signal and battery voltage feedback
• Limp home mode
• External smart power switch control
• Operating voltage is 7.08 V to 18 V with sleep current < 5.0 µA, extended mode from 6.08 V to 28 V
• -16 V reverse polarity and ground disconnect protections
• Compatible PCB foot print and SPI software driver among the family


Applications of MC08XS6421BEKR2


• Low-voltage automotive lighting
• Halogen lamps
• Incandescent bulbs
• Light-emitting diodes (LEDs)
• HID Xenon ballasts


Environmental & Export Classifications of MC08XS6421BEKR2

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001


MC08XS6421BEKR2 Power Switch/Driver 1:1 N-Channel 5.5A, 11A 32-HSOP


Wholesale MC08XS6421BEKR2 Power Switch/Driver 1:1 N-Channel 5.5A, 11A 32-HSOP from china suppliers

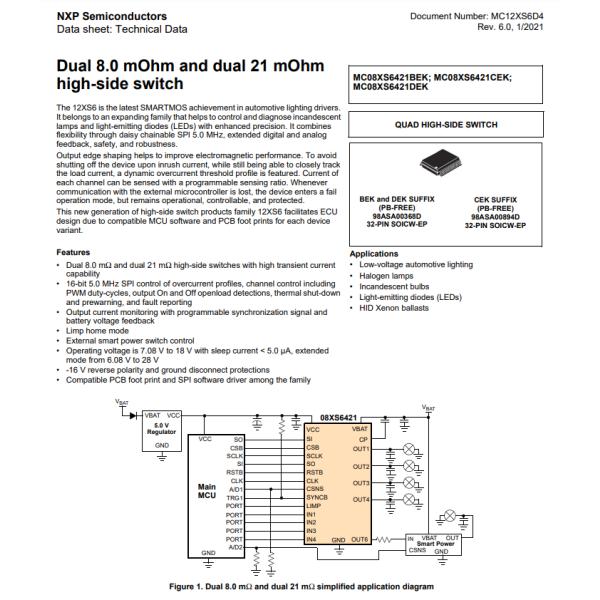

MC08XS6421BEKR2 Power Switch/Driver 1:1 N-Channel 5.5A, 11A 32-HSOP Images
