LT1568IGN # TRPBF Band Pass Filter IC Band Pass 2nd Order 200kHz 16-SSOP

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

LT1568IGN # TRPBF Band Pass Filter IC Band Pass 2nd Order 200kHz 16-SSOP

Brand Name : original

Model Number : LT1568IGN#TRPBF

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Filter Type : Band Pass

Frequency - Cutoff or Center : 200kHz

Number of Filters : 2

Filter Order : 2nd

Voltage - Supply : 2.7V ~ 11V, ±2.7V ~ 5.5V

Mounting Type : Surface Mount

Package / Case : 16-SSOP (0.154", 3.90mm Width)

Base Product Number : LT1568

Contact Now

LT1568IGN # TRPBF Band Pass Filter IC Band Pass 2nd Order 200kHz 16-SSOP​


Specifications of LT1568IGN#TRPBF

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Interface
Filters - Active
Mfr Analog Devices Inc.
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Filter Type Band Pass
Frequency - Cutoff or Center 200kHz
Number of Filters 2
Filter Order 2nd
Voltage - Supply 2.7V ~ 11V, ±2.7V ~ 5.5V
Mounting Type Surface Mount
Package / Case 16-SSOP (0.154", 3.90mm Width)
Supplier Device Package 16-SSOP
Base Product Number LT1568

Features of LT1568IGN#TRPBF

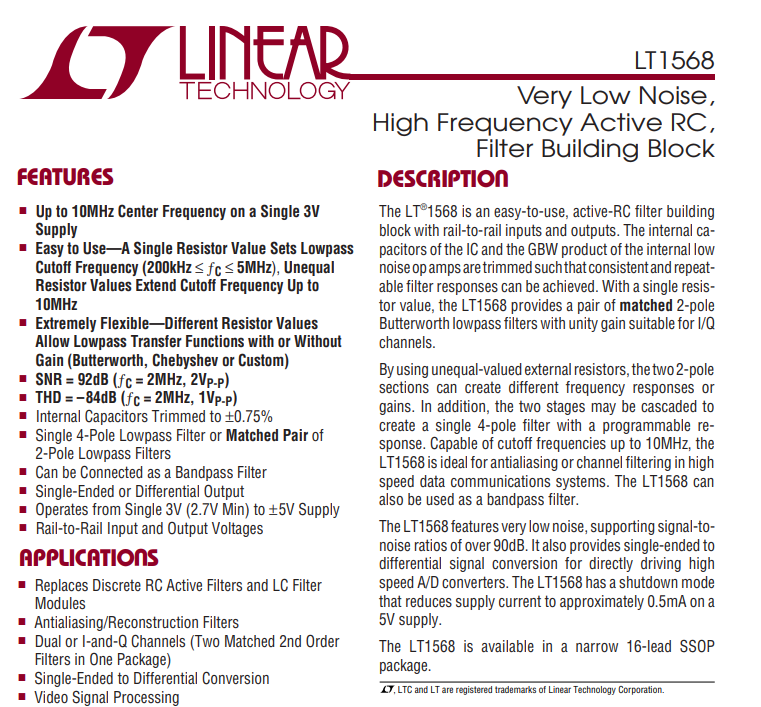

■ Up to 10MHz Center Frequency on a Single 3V Supply
■ Easy to Use—A Single Resistor Value Sets Lowpass Cutoff Frequency (200kHz ≤ ƒC ≤ 5MHz), Unequal Resistor Values Extend Cutoff Frequency Up to 10MHz
■ Extremely Flexible—Different Resistor Values Allow Lowpass Transfer Functions with or Without Gain (Butterworth, Chebyshev or Custom)
■ SNR = 92dB (ƒC = 2MHz, 2VP-P)
■ THD = –84dB (ƒC = 2MHz, 1VP-P)
■ Internal Capacitors Trimmed to ±0.75%
■ Single 4-Pole Lowpass Filter or Matched Pair of 2-Pole Lowpass Filters
■ Can be Connected as a Bandpass Filter
■ Single-Ended or Differential Output
■ Operates from Single 3V (2.7V Min) to ±5V Supply
■ Rail-to-Rail Input and Output Voltages

Applications of LT1568IGN#TRPBF


■ Replaces Discrete RC Active Filters and LC Filter Modules
■ Antialiasing/Reconstruction Filters
■ Dual or I-and-Q Channels (Two Matched 2nd Order Filters in One Package)
■ Single-Ended to Differential Conversion
■ Video Signal Processing


Environmental & Export Classifications of LT1568IGN#TRPBF

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
